Setting up KMS Server for vCenter¶

This guide shows you how to:

Generate a Certificate Authority (CA)
Generate a server private key and CSR
Sign the server certificate with your CA
Verify the signed certificate
Export the certificate bundle to PKCS#12
Configure the KMS server (kms.toml)

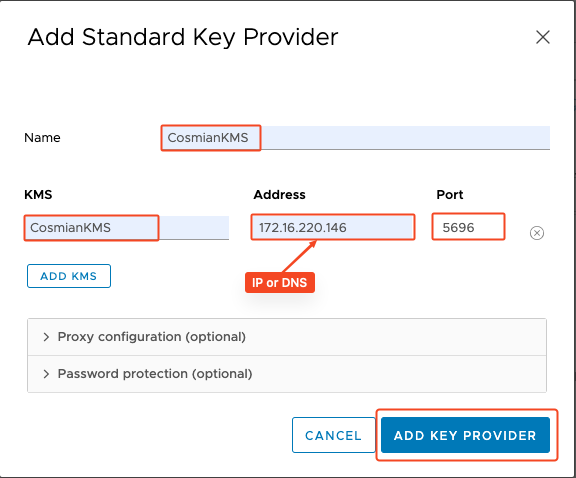

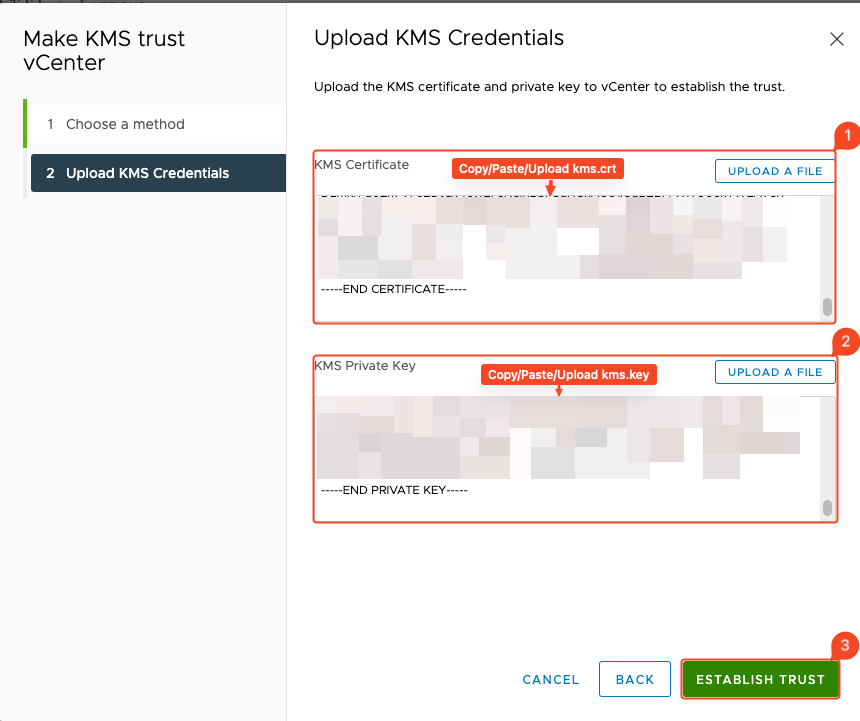

You’ll use these certificates to connect your KMS instance to a vCenter environment.

Prerequisites¶

OpenSSL (≥ 1.1.1) installed and on your PATH
A working copy of openssl.cnf with a [ v3_ca ] section
UNIX shell (bash, zsh, etc.)
A directory to store your certificates, e.g., /etc/ssl/{{ORG_NAME}}_certs

1. Generate Your CA¶

Create a 2048-bit RSA private key for your CA, then issue a self-signed root certificate:

# 1. Generate CA private key
openssl genrsa -out ca.key 2048

# 2. Create self-signed CA certificate (10 year validity)
openssl req -x509 -nodes -days 3650 \
  -new -key ca.key \
  -out ca.crt \
  -config openssl.cnf \
  -extensions v3_ca \
  -subj "/C=<COUNTRY>/ST=<STATE>/L=<CITY>/O=<ORG_NAME>/OU=<UNIT>/CN=<CA_COMMON_NAME>"

ca.key: CA private key (keep this highly secure!)
ca.crt: Public root certificate, used to sign and verify downstream certificates

2. Generate Server Key & CSR¶

Create a new 2048-bit RSA key for your KMS server and a CSR including EKU extensions:

openssl req -newkey rsa:2048 -nodes \
  -keyout server.key \
  -out server.csr \
  -subj "/CN=<SERVER_COMMON_NAME>/O=<ORG_NAME>/C=<COUNTRY>" \
  -addext "keyUsage = digitalSignature, keyEncipherment" \
  -addext "extendedKeyUsage = clientAuth, serverAuth"

server.key: Server’s private key
server.csr: Certificate Signing Request, with clientAuth & serverAuth EKUs

3. Sign the Server Certificate¶

Use your CA to sign the CSR, embedding the same EKU settings in the issued certificate:

openssl x509 -req \
  -in server.csr \
  -CA ca.crt -CAkey ca.key -CAcreateserial \
  -out server.crt \
  -days 365 \
  -extfile <(printf "[req_ext]\n\
keyUsage = digitalSignature,keyEncipherment\n\
extendedKeyUsage = clientAuth,serverAuth\n") \
  -extensions req_ext

server.crt: The signed certificate, valid for 1 year

4. Verify the Certificate Extensions¶

Confirm that your certificate contains the correct EKU fields:

openssl x509 -in server.crt -text -noout | grep -A1 "Extended Key Usage"

Expected output:

            X509v3 Extended Key Usage:
                TLS Web Server Authentication, TLS Web Client Authentication

5. Export to PKCS#12¶

Bundle your server certificate, private key, and CA chain into a single .p12 archive:

openssl pkcs12 -export \
  -in server.crt \
  -inkey server.key \
  -certfile ca.crt \
  -out server.p12 \
  -name "{{SERVER_ALIAS}}" \
  -passout pass:<P12_PASSWORD>

server.p12: PKCS#12 archive containing your key and certificates
<P12_PASSWORD>: Password to unlock the archive — use a strong secret!

6. Configure the KMS Server (`kms.toml`)¶

Below is a template kms.toml. Update file paths, usernames, and passwords as required:

# General Configuration
default_username = "<USERNAME>"
force_default_username = false
socket_server_start = true

[http]
port = 9998
hostname = "0.0.0.0"
https_p12_file = "/etc/ssl/{{ORG_NAME}}_certs/server.p12"
https_p12_password = "<P12_PASSWORD>"
authority_cert_file = "/etc/ssl/{{ORG_NAME}}_certs/ca.crt"
