HSM keys & operations
In addition to managing its own keys, Cosmian KMS can act as a proxy to an HSM to store and manage keys in the HSM.
HSM keys¶
HSM keys are prefixed keys. They are created with a unique identifier that is pre-fixed by the hsm keyword and the
slot
number in the form:
For instance, the key hsm::1::mykey is a key stored in the HSM slot 1 with the identifier mykey. Technically, this
identifier is stored in the LABEL field of the key object in the HSM.
Non-prefixed keys are considered KMS keys and are stored in the KMS database.
KMIP operations¶
Some KMIP operations can be performed on HSM keys via the KMS server API.
First, make sure the HSM is configured and that the Cosmian CLI is installed and configured.
Create¶
Create a new key in the HSM. The key unique must be provided on the request and must follow the
hsm::<slot_number>::<key_identifier> format described above.
Only the user identified by the --hsm-admin argument can create keys in the HSM.
RSA and AES keys are supported.
When creating an RSA key, the key_identifier will be that of the private key. The corresponding public key will be
automatically created and stored in the HSM with the same key_identifier but with the _pk suffix, for example, the
public key of the hsm::1::mykey private key will be created with unique identifier has::1::mykey_pk.
Create an RSA 4096-bit key with the Cosmiian CLI:
❯ cosmian kms rsa keys create --size_in_bits 4096 --sensitive hsm::4::my_rsa_key
The RSA key pair has been created.
Public key unique identifier: hsm::4::my_rsa_key_pk
Private key unique identifier: hsm::4::my_rsa_key
Create an AES 256-bit key with the Cosmiian CLI:
❯ cosmian kms sym keys create --algorithm aes --number-of-bits 256 --sensitive hsm::4::my_aes_key
The symmetric key was successfully generated.
Unique identifier: hsm::4::my_aes_key
Keys should be flagged as sensitive when created in the HSM, so that the private key or symmetric key cannot be
exported (see below Get and Export).
Note: HSM keys do not support object tagging in this release.
Destroy¶
Contrarily to the KMS keys, HSM keys must not be Revoked before being Destroyed. The Destroy operation will remove the
key from the HSM.
Only the user identified by the --hsm-admin argument or a user which has been granted the Destroy operation (by the
HSM admin) can destroy keys in the HSM.
To destroy the key hsm::4::my_rsa_key, the following command can be used:
❯ cosmian kms rsa keys destroy --key-id hsm::4::my_rsa_key
Successfully destroyed the key.
Unique identifier: hsm::4::mykey
To destroy the corresponding public key hsm::4::my_rsa_key_pk, the following command can be used:
❯ cosmian kms rsa keys destroy --key-id hsm::4::my_rsa_key_pk
Successfully destroyed the object.
Unique identifier: hsm::4::my_rsa_key_pk
Get & Export¶
The Get and Export operations are used to retrieve the key material from the HSM.
Only the user identified by the --hsm-admin argument or a user which has been granted the Get operation (by the HSM
admin) can retrieve keys from the HSM.
Private keys or symmetric keys marked as sensitive cannot be retrieved from the HSM. The public key of a keypair can
always be retrieved.
To export the public key hsm::4::my_rsa_key_pk in PKCS#8 PEM format, the following command can be used:
❯ cosmian kms rsa keys export --key-id hsm::4::my_rsa_key_pk --key-format pkcs8-pem /tmp/pubkey.pem
The key hsm::4::my_rsa_key_pk of type PublicKey was exported to "/tmp/pubkey.pem"
Unique identifier: hsm::4::my_rsa_key_pk
To export the private key hsm::4::mykey in PKCS#8 PEM format, the following command can be used:
❯ cosmian kms rsa keys export --key-id hsm::4::my_rsa_key --key-format pkcs8-pem /tmp/privkey.pem
The key hsm::4::my_rsa_key of type PrivateKey was exported to "/tmp/privkey.pem"
Unique identifier: hsm::4::my_rsa_key
To export the symmetric key hsm::4::my_aes_key in raw format (i.e. raw bytes),
the following command can be used:
❯ cosmian kms sym keys export --key-id hsm::4::my_aes_key --key-format raw /tmp/symkey.raw
The key hsm::4::my_aes_key of type SymmetricKey was exported to "/tmp/symkey.raw"
Unique identifier: hsm::4::my_aes_key
Encrypt¶
Symmetric keys and public keys can be used to encrypt data. Only the user identified by the --hsm-admin argument or a
user which has been granted the Encrypt operation (by the HSM admin) can encrypt data with keys stored in the HSM.
For symmetric keys, only AES GCM is supported. For RSA keys, CKM_RSA_PKCS_OAEP and the now deprecated, but still widely used, CKM_RSA_PKCS (v1.5) are supported. The hashing algorithm is fixed to SHA256.
When using RSA the maximum message size in bytes is:
- PKCS#1 v1.5: (key size in bits / 8) - 11
- OAEP: (key size in bits / 8) - 66
To encrypt a message with the public key hsm::4::my_rsa_key_pk and the CKM RSA PKCS OAEP algorithm,
the following command can be used:
❯ cosmian kms rsa encrypt --key-id hsm::4::my_rsa_key_pk --encryption-algorithm ckm-rsa-pkcs-oaep \
/tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
To encrypt a message using AES GCM with the symmetric key hsm::4::my_aes_key, the following command can be used:
❯ cosmian kms sym encrypt --key-id hsm::4::my_aes_key --data-encryption-algorithm aes-gcm /tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
Decrypt¶
Symmetric keys and private keys can be used to decrypt data. Only the user identified by the --hsm-admin argument or a
user which has been granted the Decrypt operation (by the HSM admin) can decrypt data with keys stored in the HSM.
For symmetric keys, only AES GCM is supported. For RSA keys, CKM_RSA_PKCS_OAEP and the now deprecated, but still widely used, CKM_RSA_PKCS (v1.5) are supported. The hashing algorithm is fixed to SHA256.
To decrypt a message with the private
key hsm::4::hsm::4::my_rsa_key and the CKM RSA PKCS OAEP algorithm, the following command can be used:
❯ cosmian kms rsa decrypt --key-id hsm::4::my_rsa_key --encryption-algorithm ckm-rsa-pkcs-oaep \
--output-file /tmp/secret.recovered.txt /tmp/secret.enc
The decrypted file is available at "/tmp/secret.plain"
To decrypt a message using AES GCM with the symmetric key hsm::4::my_aes_key, the following command can be used:
> cosmian kms sym decrypt --key-id hsm::4::my_aes_key --data-encryption-algorithm AesGcm \
--output-file /tmp/secret.recovered.txt /tmp/secret.enc
The decrypted file is available at "/tmp/secret.recoverd.txt"
Creating a KMS key wrapped by an HSM key¶

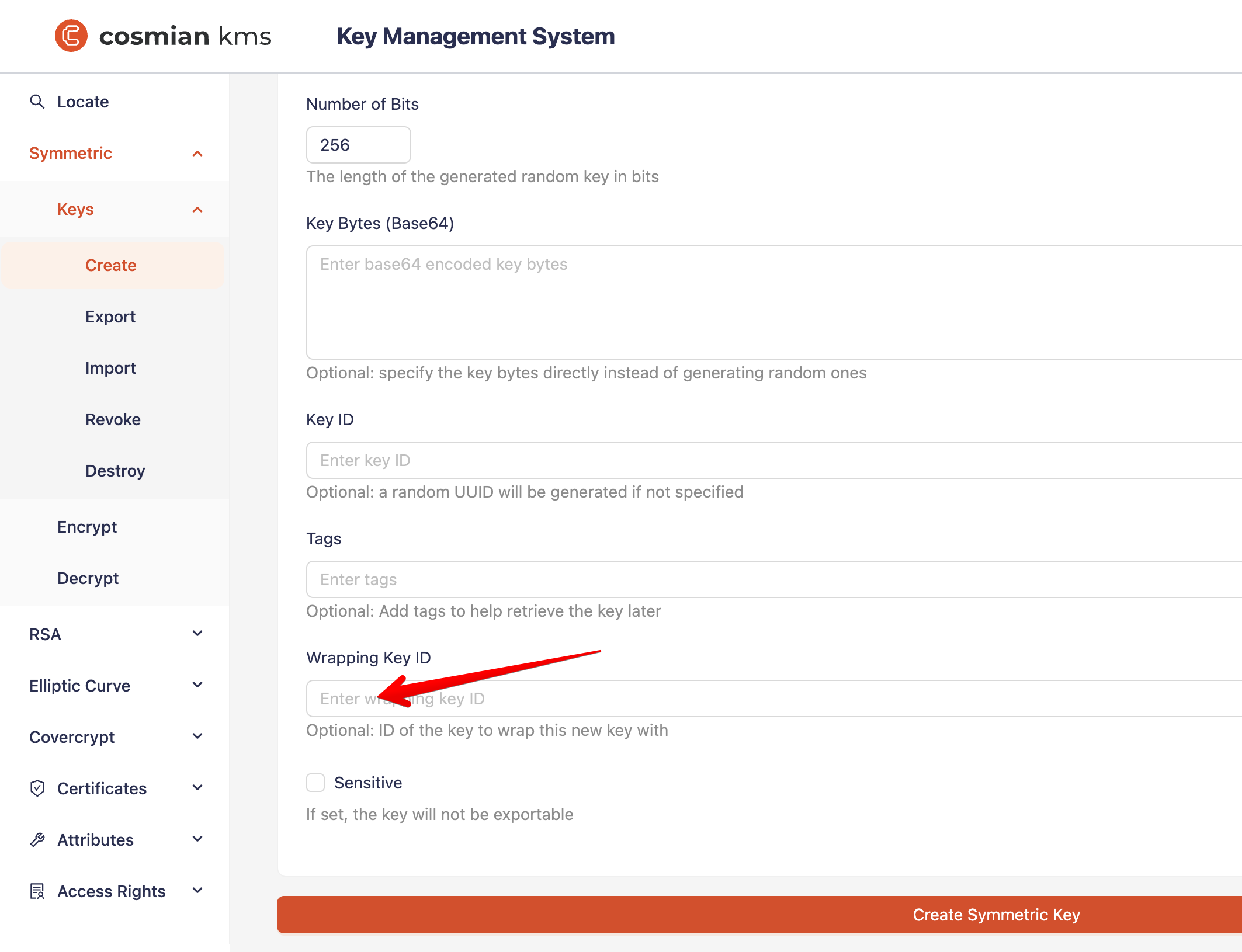

To create a KMS key wrapped by an HSM key, the --wrapping-key-id argument must be used to specify the unique
identifier of the HSM key.
The user creating the key must be the HSM admin (see above) or have been granted the Encrypt operation on the HSM key.
For instance, the following command creates a 256-bit AES key wrapped by the HSM RSA (public) key
hsm::4::my_rsa_key_pk:
> cosmian kms sym keys create --algorithm aes --number-of-bits 256 --sensitive \
--wrapping-key-id hsm::4::my_rsa_key_pk my_sym_key
The symmetric key was successfully generated.
Unique identifier: my_sym_key
The symmetric key is now stored in the database encrypted (wrapped) by the HSM key. The encryption happened in the HSM.
The symmetric key can now be used to encrypt, and decrypt data, and the KMS will transparently unwrap the key using the HSM key.
This unwrapping will happen once, and the unwrapped symmetric key will be cached in memory for later operations; no clear text symmetric key will be stored in the KMS database.
Small data: encrypting server side¶
For example, to encrypt a message with the key my_sym_key server side, the following command can be used:
> cosmian kms sym encrypt --key-id my_sym_key /tmp/secret.txt
The encrypted file is available at "/tmp/secret.enc"
To decrypt a message with the key my_sym_key, the following command can be used:
> cosmian kms sym decrypt --key-id my_sym_key --output-file /tmp/secret.recovered.txt /tmp/secret.enc
The decrypted file is available at "/tmp/secret.recovered.txt"
Large data: encrypting client side with key wrapping¶
To encrypt a large file with the key my_sym_key client side, the following command can be used:
>cosmian kms sym encrypt --key-id my_sym_key_2 --data-encryption-algorithm aes-gcm \
--key-encryption-algorithm rfc5649 /tmp/large.bin
The encrypted file is available at "/tmp/large.enc"
In this case an ephemeral symmetric key (the Data Encryption Key, DEK)
is generated and used to encrypt the data. The DEK is then encrypted/wrapped with RFC4659 (a.k.a NIST AES Key Wrap)
with the key my_sym_key, called the Key Encryption Key, KEK. The wrapping of the DEK by the KEK
is stored at the beginning of the encrypted file.
At rest, in the KMS database, my_sym_key is stored encrypted/wrapped with the HSM key hsm::4::my_rsa_key_pk.
To decrypt a large file with the KEK my_sym_key client side, the following command can be used:
