CMEK (Customer Managed Encryption Keys)

To import a Customer Managed Encryption Key in the Google KMS, follow the instructions on Google documentation related to importing a manually wrapped key.

• Prepare the symmetric key and wrapping key in Google Cloud KMS
• Create a symmetric key in Cosmian KMS
• Import the wrapping key in Cosmian KMS
• Export the symmetric key wrapped by the wrapping key from Cosmian KMS
• Import the wrapped key in Google Cloud KMS

Prepare the symmetric key and wrapping key in Google Cloud KMS

Using the Google Console, first create a key in an existing Cloud KMS key ring.

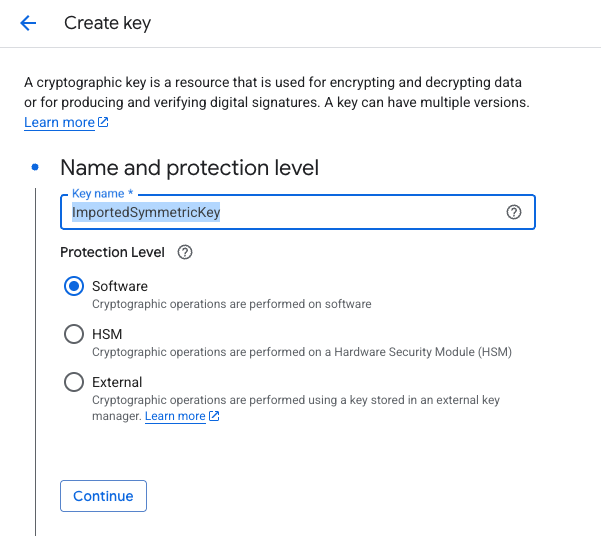

Figure 1: Create a key in an existing Cloud KMS key ring

Click Continue and select Imported Key

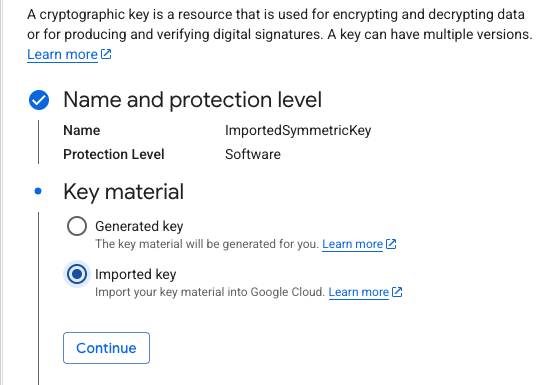

Figure 2: Select Imported Key

Then click Create

In the Select Import Job dropdown, select Create Import Job

Figure 3: Create Import Job

Select 4096 bit RSA -OAEP Padding - SHA256 digest + 256 bit AES-KWP as import method then click Create

Then click Download wrapping key

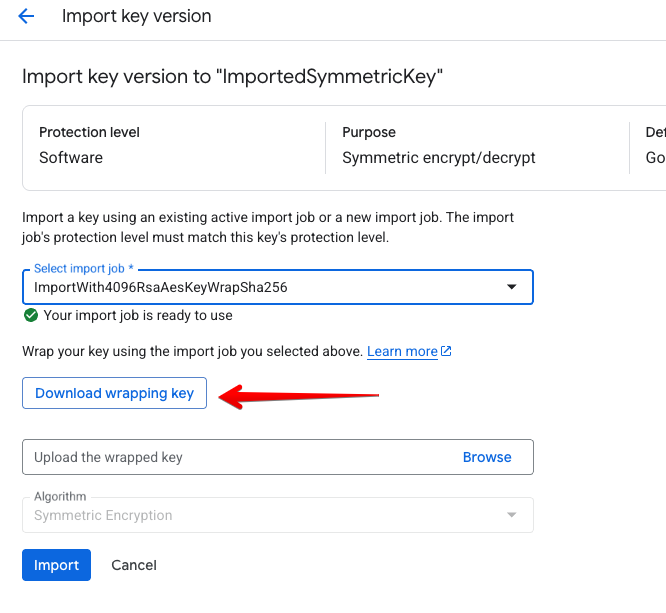

Figure 4: Download the wrapping key

The key will be downloaded as a PKCS#8 PEM named ImportWith4096RsaAesKeyWrapSha256.pem

Create a symmetric key in Cosmian KMS

This is the symmetric key that will be wrapped by the Google wrapping key and imported in the Google KMS.

cosmian kms sym keys create  --number-of-bits 256 CMEK_Sym_Key

The symmetric key was successfully generated.
          Unique identifier: CMEK_Sym_Key

Import the wrapping key in Cosmian KMS

cosmian kms rsa keys import --key-format pem --key-usage encrypt --key-usage wrap-key \
ImportWith4096RsaAesKeyWrapSha256.pem CMEK_Wrapping_Key

The PublicKey in file ImportWith4096RsaAesKeyWrapSha256.pem was imported with id: CMEK_Wrapping_Key
          Unique identifier: CMEK_Wrapping_Key

Export the symmetric key wrapped by the wrapping key from Cosmian KMS

cosmian kms sym keys export --key-id CMEK_Sym_Key --wrap-key-id  CMEK_Wrapping_Key \
 --key-format raw --wrapping-algorithm rsa-aes-key-wrap wrapped_key.bin

The key CMEK_Sym_Key of type SymmetricKey was exported to "wrapped_key.bin"
          Unique identifier: CMEK_Sym_Key

Note 1: The rsa-aes-key-wrap wrapping algorithm uses the SHA256 digest.

Note 2: the wrapped key should be 552 bytes (4416 bits) long:

• 4096 bits (RSA key length) +
• 256 bits (Symmetric key length) +
• 64 bits of AES KWP overhead.

Import the wrapped key in Google Cloud KMS

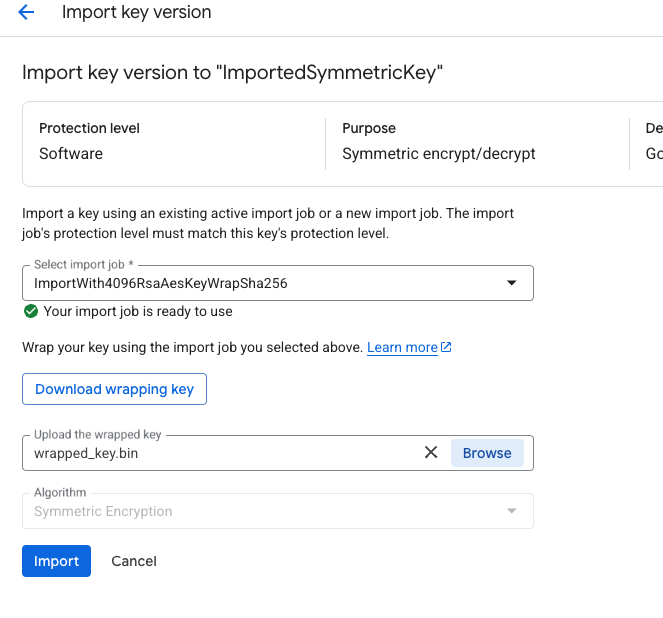

Figure 5: Import the wrapped key in Google Cloud KMS

The key should now be available in the Google Cloud KMS.

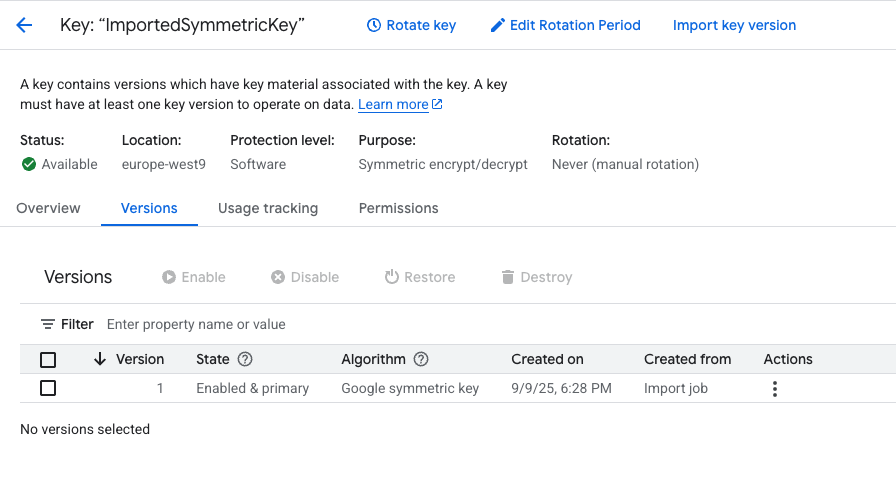

Figure 6: The key should now be available in the Google Cloud KMS
