BYOK (Bring Your Own Key)
Cosmian KMS provides a azure byok command in its CLI to facilitate the import of an Azure wrapping key (KEK) in
Cosmian KMS, and the export of the wrapped keys in the .byok format for easy import in Azure Key Vault.
Follow this Azure documentation, for a description of Bring Your Own Key (BYOK) in Azure Key Vault,
The vault must be a premium Azure Key Vault, and the user performing the operations
must have the role of Crypto Officer.
- Create two test keys in the Cosmian KMS
- Create an Azure Key Encryption Key (KEK)
- Export the Key Encryption (Public) Key
- Import the key encryption key in Cosmian KMS
- Export the wrapped keys from the Cosmian KMS
- Upload the byok transfer blob in Azure Key Vault
Create two test keys in the Cosmian KMS¶
These keys will later be exported wrapped by the Azure (KEK) key, and imported into Azure Key Vault.
Create an RSA Key¶
The key will be a 4096-bit key.
cosmian kms rsa keys create --size_in_bits 4096 TestRSAKey
Public key unique identifier: TestRSAKey_pk
Private key unique identifier: TestRSAKey
Create an Elliptic Curve Key¶
The key will be created on the NIST P-256 curve.
cosmian kms ec keys create --curve nist-p256 TestECKey
Public key unique identifier: TestECKey_pk
Private key unique identifier: TestECKey
Create an Azure Key Encryption Key (KEK)¶
This key will be used to wrap the KMS RSA and EC private keys on export.

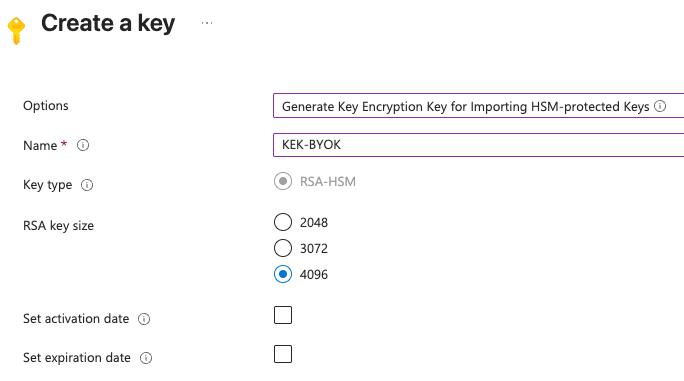

Using the Azure console:
Navigate to the Key Vault (say MyPremiumKeyVault) and create a 4096-bit RSA key.
Make sure to select Generate Key Encryption Key for importing HSM-protected Keys.
Using the az CLI:
The supported operations must be restricted to import.
az keyvault key create --kty RSA-HSM --size 4096 --name KEK-BYOK --ops import --vault-name MyPremiumKeyVault
In the azoutput, the key identifier (kid) will be something like:
“https://mypremiumkeyvault.vault.azure.net/keys/KEK-BYOK/664f5aa2797a4075b8e36ca4500636d8“
Please take note of the kid for next steps.
Export the Key Encryption (Public) Key¶
The KEK public key must be exported, then imported into the KMS.

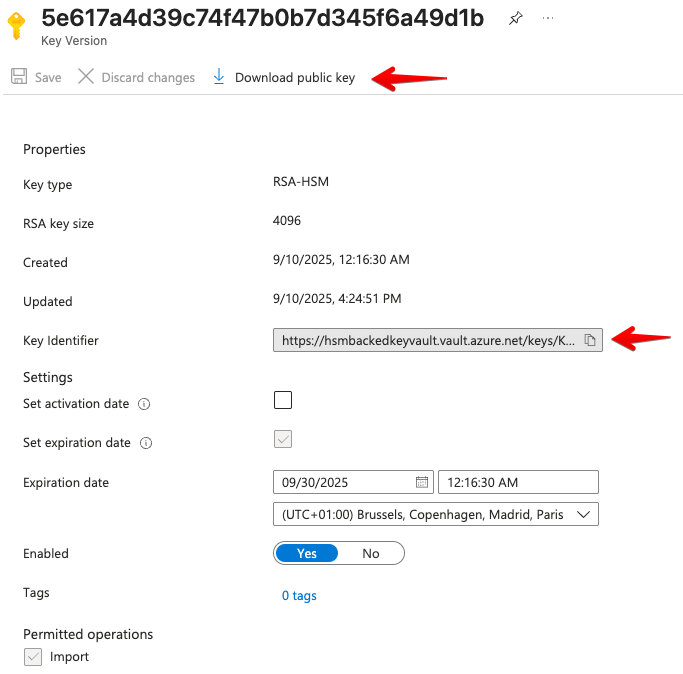

Using the Azure console:
Edit the KEK by double-clicking on it.
Please take note of the key identifier (kid), which will be required later.
Download the public key and rename the file KEK-BYOK.public.pem.
Using the az CLI:
Import the key encryption key in Cosmian KMS¶
The Cosmian CLI provides an azure byok command to facilitate both the import of the key encryption key in Cosmian KMS,
and the export of the wrapped keys in the .byok format for easy import in Azure Key Vault.
cosmian kms azure byok import KEK-BYOK.public.pem \
https://hsmbackedkeyvault.vault.azure.net/keys/BYOK_KEK/5e617a4d39c74f47b0b7d345f6a49d1b \
BYOK_KEK
The PublicKey in file KEK-BYOK.public.pem was imported with id: BYOK_KEK
Unique identifier: BYOK_KEK
Tags:
- azure
- kid:https://hsmbackedkeyvault.vault.azure.net/keys/BYOK_KEK/5e617a4d39c74f47b0b7d345f6a49d1b
Please note the presence of the azure and kid: tags on the key.
These identify the key as an Azure Key Encryption Key (KEK) in the Cosmian KMS.
Export the wrapped keys from the Cosmian KMS¶
The Cosmian CLI azure byok export command will generate a .byok file
containing the wrapped private key, which can be directly imported into Azure Key Vault.
Export the RSA key¶
cosmian kms azure byok export TestRSAKey BYOK_KEK
The byok file was written to "TestRSAKey.byok" for key TestRSAKey
Export the EC key¶
cosmian kms azure byok export TestECKey BYOK_KEK
The byok file was written to "TestECKey.byok" for key TestECKey
Upload the byok transfer blob in Azure Key Vault¶
Wrapped private RSA keys can be imported using either the console or the az LI.
Elliptic curve keys can only be imported using the az CLI.
For an RSA Private Key¶

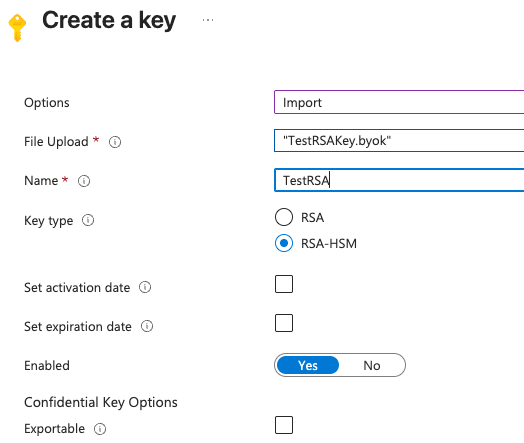

Using the Azure console:
Using the az CLI:
az keyvault key import --vault-name MyPremiumKeyVault --name TestRSAKey --byok-file TestRSAKey.byok \
--ops sign verify
For an EC Private Key¶
The key type and curve must be specified on import for elliptic curve keys.
