Prim’X CRYHOD¶
The Cosmian KMS can be used to unlock Prim’x CRYHOD partitions
Configuring Prim’X CRYHOD¶

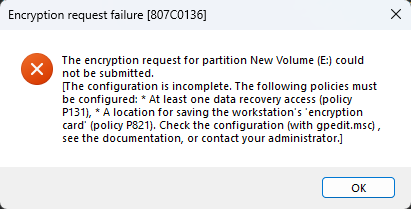

If you get the following popup when trying to encrypt a disk
Additional configuration is required.

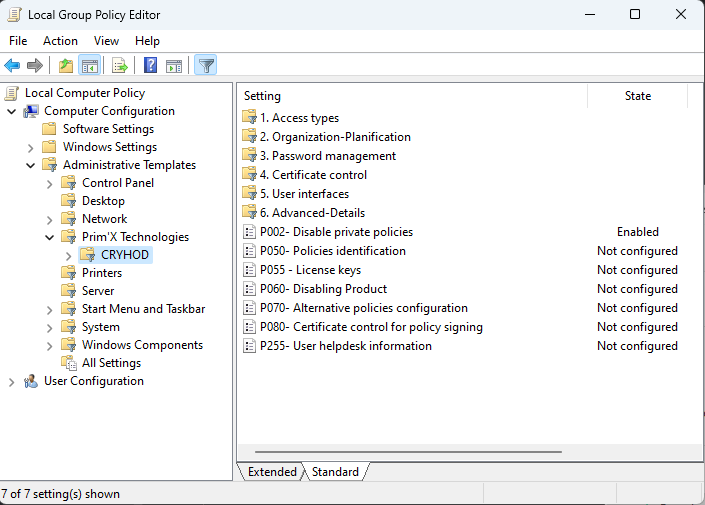

Launch the CRYHOD policies application.

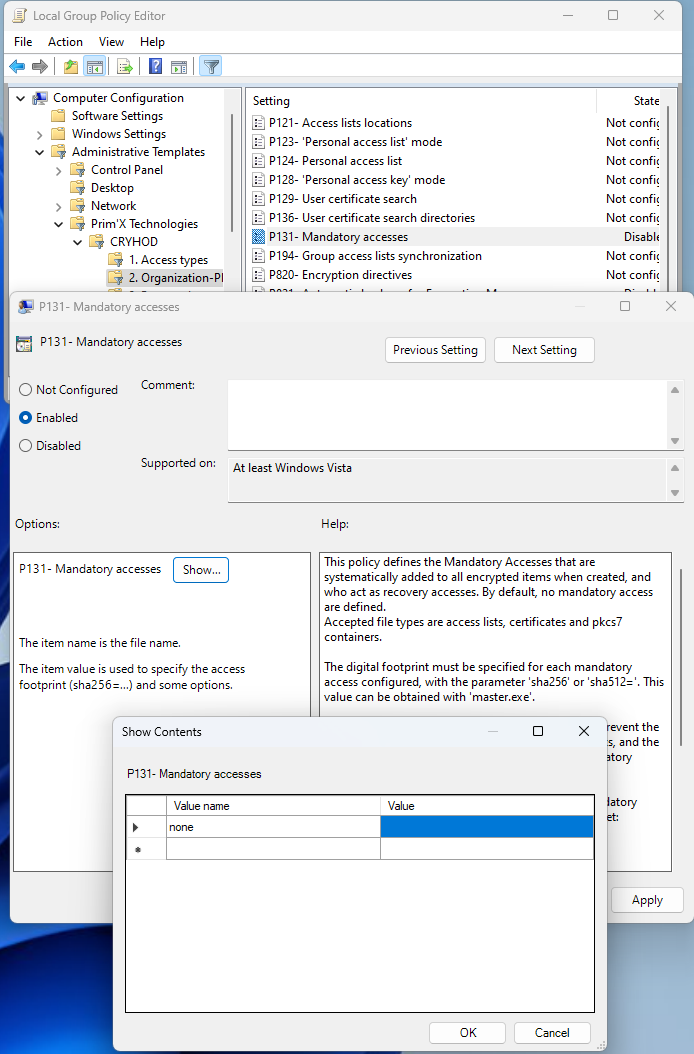

Configure the P131 policy:
For testing you can set the value to th.

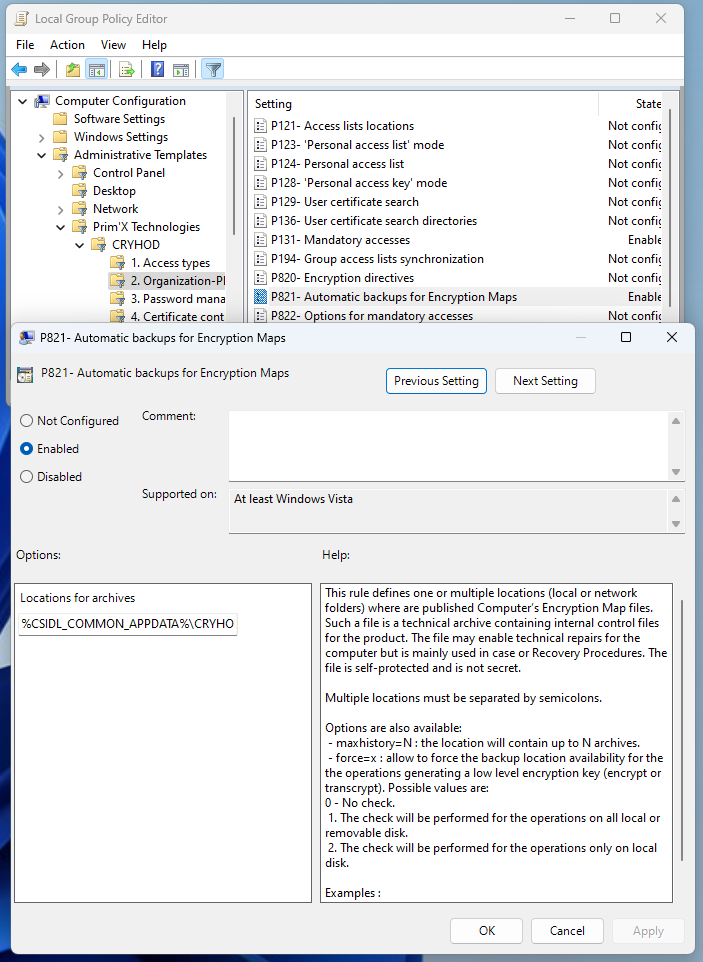

Configure the P821 policy:
For testing you can keep the default values.

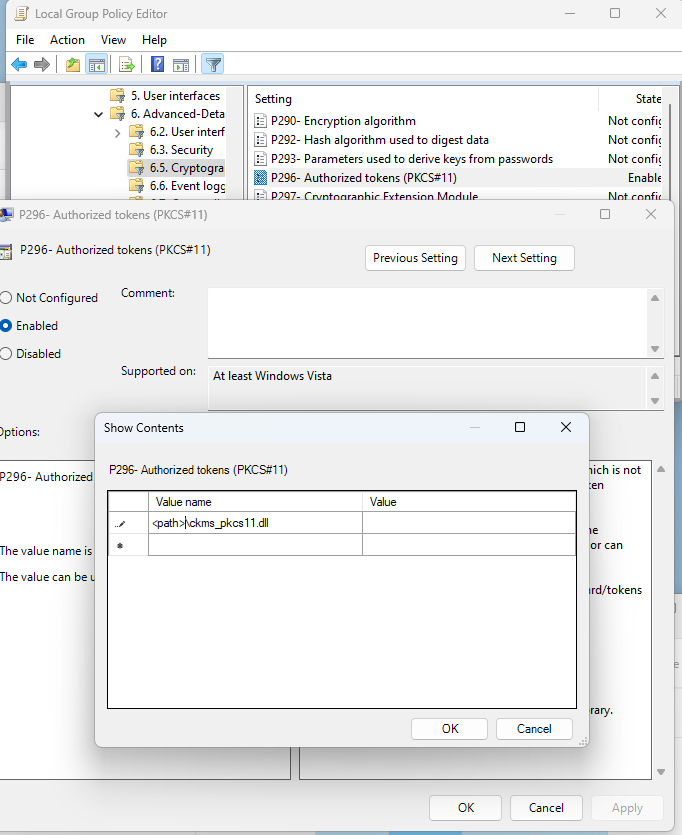

Configuring the location of the PKCS#11 provider using the policy P296
Enter the full path of the cosmian_pkcs11.dll as value name and leave the value empty.
Note: if you change the value, kill all CRYHOD processes or restart for the change to be taken into effect
Encrypting a partition¶

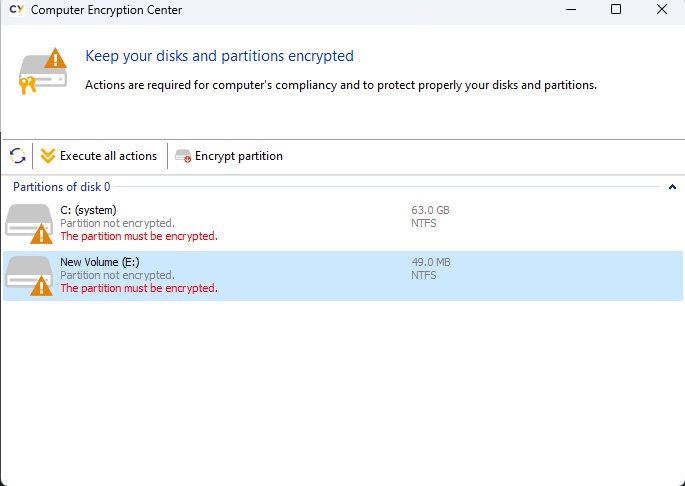

Launch Computer Encryption Center
And select the partition to encrypt.

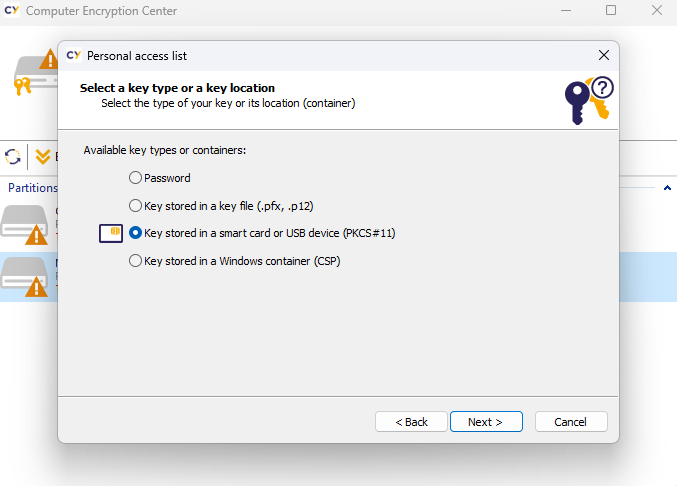

Then select Key stored in a smart card or USB device (PKCS#11)

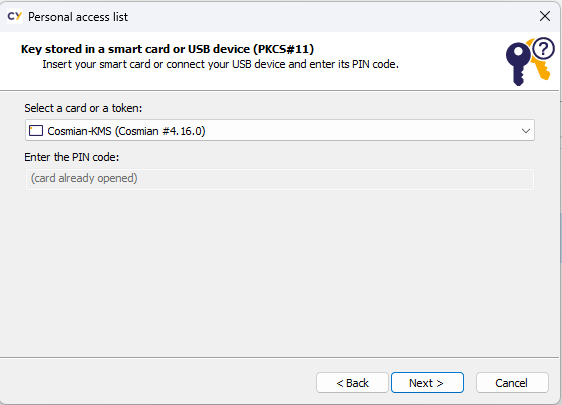

Click next; the Comsian KMS should appear in the list
Click next
Adjusting the KMS location and authentication¶
The configuration file is located in the User home .cosmian sub-directory,
in the cosmian.toml file.
See Authenticating users to the KMS to learn how to configure the KMS to use Open ID connect or certificate authentication (please note that the KMS can also manage the machines certificates).
Here is an example configuration file for the PKCS#11 provider library accessing the KMS using a PKCS#12 file for authentication.
[kms_config.http_config]
server_url = "https://kms.acme.com:9999"
ssl_client_pkcs12_path = "./certificates/machine123.acme.p12"
ssl_client_pkcs12_password = "machine123_pkcs12_password"
Viewing the logs¶
By default, the logs are available in the User home .cosmian sub-directory.
The log level can be adjusted using the COSMIAN_PKCS11_LOGGING_LEVEL environment variable.
Creating a RSA private key and Certificate to use with CRYHOD¶
Create an RSA key with 2048 bits and the disk-encryption tag.
This tag is the default tag searched. The value can be changed by setting
the COSMIAN_PKCS11_DISK_ENCRYPTION_TAG environment value.
